Integrating Azure Blob Storage

Capabilities

DataGrail's Azure Blob Storage Integration provides the following capabilities:

Product	Capability
Request Manager	Foundation Connections Cloud Storage

Before You Start

To successfully configure this integration, please ensure you have sufficient privileges:

• DataGrail User Role: Super Admin, Connections Manager
• Azure Blob Storage User Role: Admin

Create a Storage Account

1. Log in to the Azure portal.
2. Select Create Resource then Storage and finally Storage Account.
3. Select the Subscription in which you're the Service Administrator.
4. Under Resources, select Create New, and name it DataGrail
5. Name your storage account. It must be between 3 and 24 characters and contain only numbers and lowercase letters.
6. Choose a Location (West US and West US 2 are recommend)
7. Set Performance to Standard
8. Set Account Kind to StorageV2 (general purpose v2)
9. Set Replication to Read-access geo-redundant storage (RA-GRS) or another replication type that supports blob storage.
10. Select Review & Create.

info

The new Storage Account may take several minutes to finish deploying. Once you see that your deployment is complete, you are ready to proceed to the next step.

Create a Blob Storage Container

1. In the Storage Account you just created, use the menu to navigate to Containers.
2. Set Name to datagrail-blob-storage.
3. Set Public access level to Private (no anonymous access)
4. Select the newly created blob storage container and ensure that the Authentication method is set to Access Key

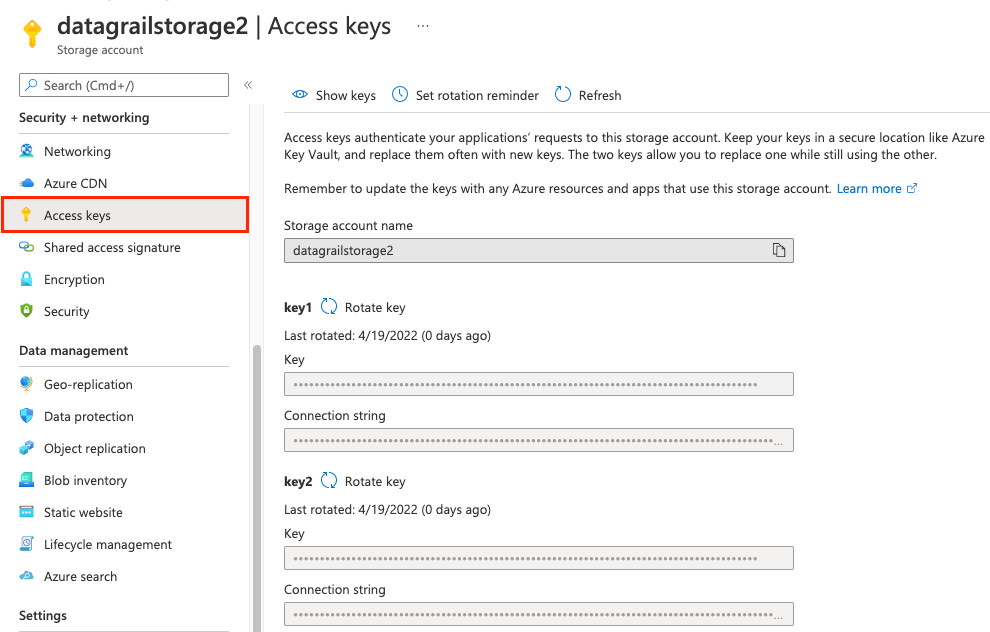

Gather Access Credentials

1. Navigate back to the main page on the Storage Account you created.
2. Navigate to Access Keys.
3. Copy the Storage Account Name.
4. Copy the Key (either under key1 or key2) and store it in a secure, temporary location.

Connect to DataGrail

1. Navigate back to DataGrail.
2. Enter your Account Name, Access Key, and Container Name.
3. Select Configure Integration.

Next Steps

Now that you've successfully connected the integration, check out the following resources:

• Purging Data from Cloud Storage
• Direct Contact Integrations

Troubleshooting

If you are unable to successfully connect the integration, review these common troubleshooting steps:

Ensure Required Permissions Are Granted on API Keys/Resources

DataGrail checks required permissions and scopes on API keys/resources used by each integration. If all necessary permissions are not granted, new connections will fail.

Review Required Account Types and User Roles

If users do not have the necessary permissions or the minimum required user role in the connecting system, the connection to DataGrail will fail. Additionally, connections will fail if your account type does not match the one required by the integration.

See Before You Start to review these requirements.
